C&I ESS

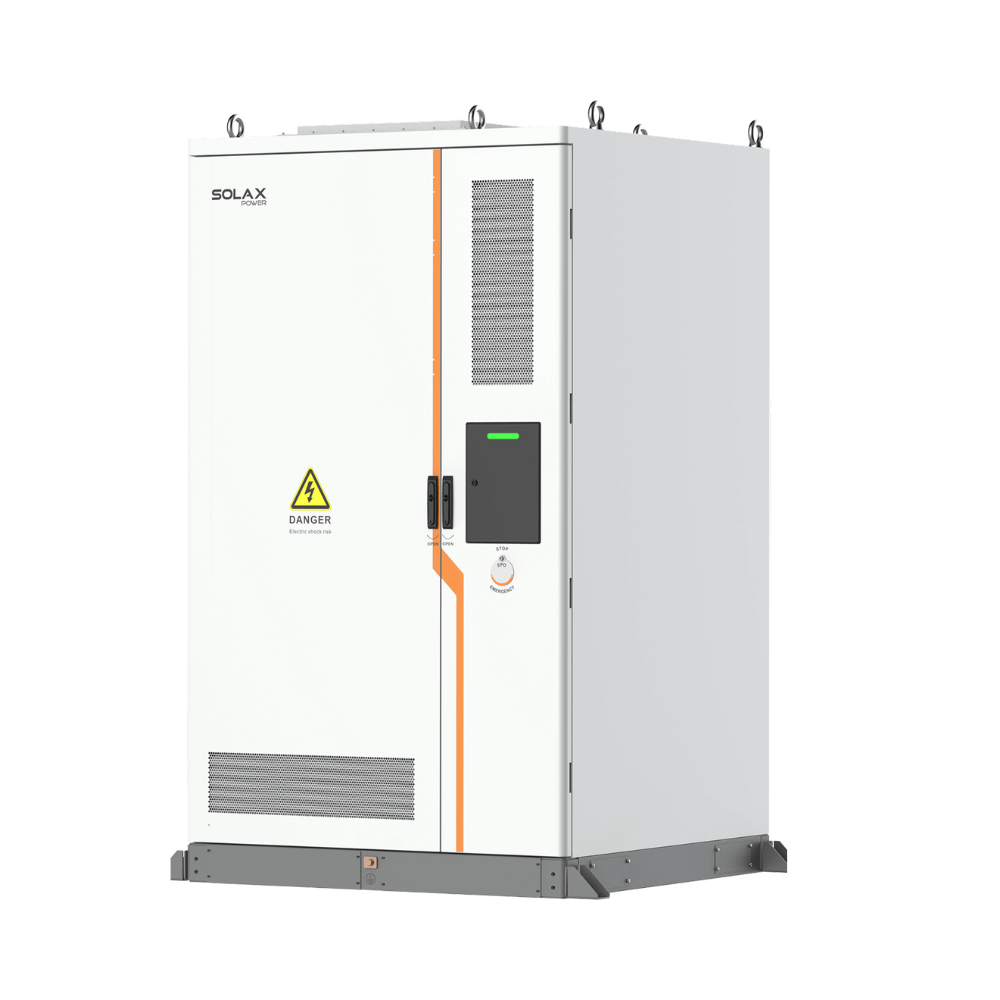

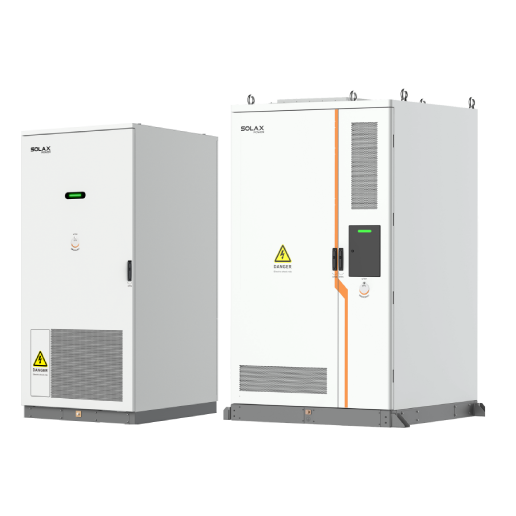

ESS-TRENE 261kWh
-
125kW | 261kWh
De AC-gekoppelde ESS-vloeistofkoelkast is ontworpen voor diverse commerciële en industriële energieopslagscenario's en integreert hoogwaardige batterijtechnologie, intelligent energiebeheer, geavanceerde veiligheidsvoorzieningen en flexibele systeemconfiguraties. Geavanceerd thermisch beheer, beveiliging op meerdere niveaus, bewaking op afstand en slim beheer en onderhoud verbeteren de systeemveiligheid, efficiëntie en levensduur verder.
-
Video Bekijken
Productvoordelen
Built with integrated BMS, EMS, and PCS architecture, the ESS-TRENE 261kWh Energy Storage System delivers stable and intelligent system operation while supporting both grid-connected and off-grid applications. Multi-level protection, advanced fire detection and suppression, intelligent thermal management, and real-time monitoring enhance overall system safety and operational reliability. Meanwhile, intelligent energy management, remote monitoring, and smart O&M capabilities enable more efficient system operation and reduce maintenance requirements and costs.
High Performance
Premium LFP battery with guaranteed quality
High power density, compact design
Scalable up to MWh
Optimised space utilisation
Assured Safety
Real-time monitoring of the entire battery cell, with a 7-day advance warning of thermal runaway
Multilevel fire safety surplus design, timely firefighting, and elimination of explosions
4+1 Fire safety design secures minimal risk and loss
Advanced fault detection and response
Intelligent Design
Equipped with the SolaX AI Cloud platform, adaptive optimization strategies maximize user benefits
Supporting a variety of C＆I energy storage scenarios
Flexible Adaptability
Modular integrated design, factory pre-installation and debugging
Plug and play on-site, convenient connection, simple configuration
Multiple machines installed seamlessly side by side, flexible deployment, and elastic expansion
Product Parameters
-
TRE261-2A-
AC INPUT & OUTPUT (ON-GRID)
Rated output power
125 kW
Rated AC voltage
3 / N / PE, 220 / 380 a.c. V
3 / N / PE, 230 / 400 a.c. V
Rated AC frequency
50 Hz / 60 Hz
-
DC SIDE
Battery type
LFP / 314 Ah
Nominal energy
261 kWh
Nominal voltage
832 d.c. V
-
GENERAL INFORMATION
Dimensions (W×D×H)
1090 × 2360 × 1350 mm
Weight
2450 kg
Operating temperature range
-30 ~ 55°C (＞45℃ derating)
Max. operation altitude
3000 m
Cooling concept
Liquid cooling
Ingress protection
IP55
If there is any change in product size and parameters, please refer to the latest information without prior notice.
-
-
TRE261-2D-
AC INPUT & OUTPUT (ON-GRID)
Rated output power
99.9 kW
Rated AC voltage
3 / N / PE, 220 / 380 a.c. V
3 / N / PE, 230 / 400 a.c. V
Rated AC frequency
50 Hz / 60 Hz
-
DC SIDE
Battery type
LFP / 314 Ah
Nominal energy
261 kWh
Nominal voltage
832 d.c. V
-
GENERAL INFORMATION
Dimensions (W×D×H)
1090 × 2360 × 1350 mm
Weight
2450 kg
Operating temperature range
-30 ~ 55°C (＞45℃ derating)
Max. operation altitude
3000 m
Cooling concept
Liquid cooling
Ingress protection
IP55
If there is any change in product size and parameters, please refer to the latest information without prior notice.
-
-

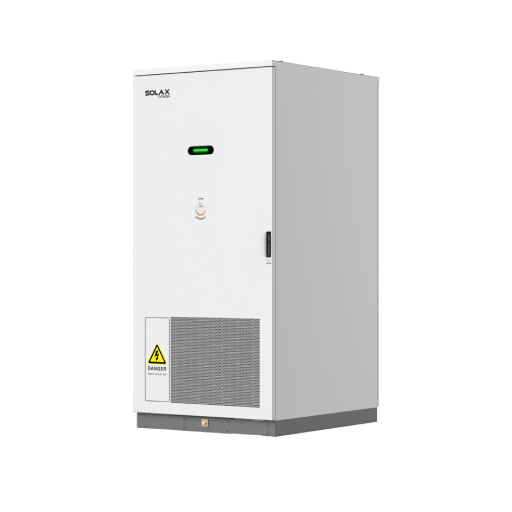

TRENE-P124B261L-E-
AC SIDE (ON-GRID)
Rated AC power
124.9 kW
Rated AC voltage
3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
Rated AC frequency
50 Hz / 60 Hz
-
DC SIDE
Battery type
LFP / 314 Ah
Nominal energy
261 kWh
Rated battery voltage
832 V
-
GENERAL INFORMATION
Dimensions (W×D×H)
1350 × 2355 × 1350 mm
Weight
2810 kg
Operating temperature range
-30 ~ 55°C (＞45℃ derating)
Max. operation altitude
3000 m
Cooling concept
Liquid cooling
Ingress protection
IP55
If there is any change in product size and parameters, please refer to the latest information without prior notice.
-
-

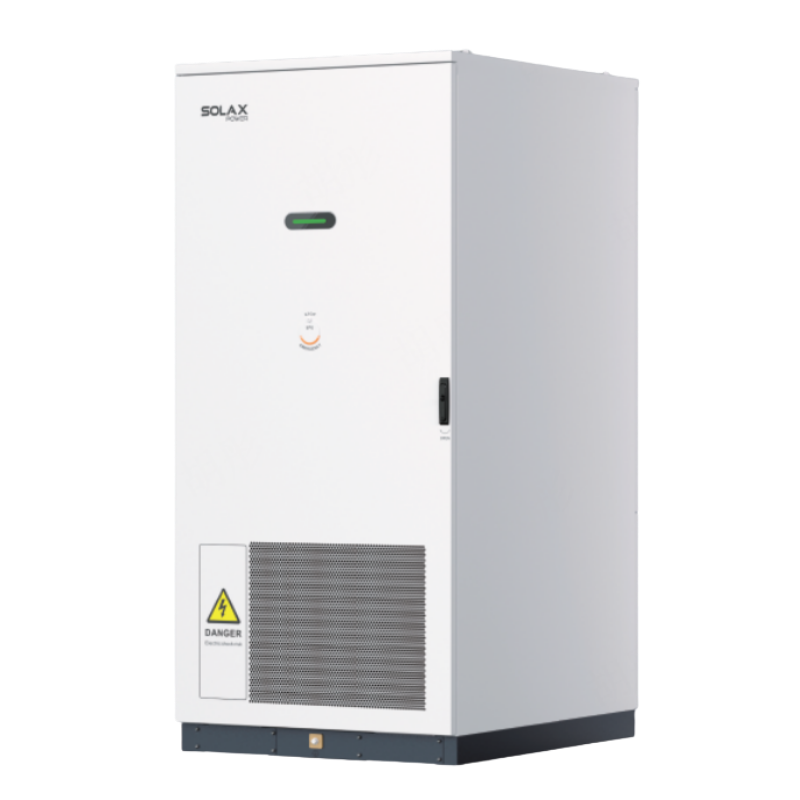

TRENE-P125B261L-E-
AC SIDE (ON-GRID)
Rated AC power
125 kW
Rated AC voltage
3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
Rated AC frequency
50 Hz / 60 Hz
-
DC SIDE
Battery type
LFP / 314 Ah
Nominal energy
261 kWh
Rated battery voltage
832 V
-
GENERAL INFORMATION
Dimensions (W×D×H)
1350 × 2355 × 1350 mm
Weight
2810 kg
Operating temperature range
-30 ~ 55°C (＞45℃ derating)
Max. operation altitude
3000 m
Cooling concept
Liquid cooling
Ingress protection
IP55
If there is any change in product size and parameters, please refer to the latest information without prior notice.
-
